LumaShade™ – Smart Light Control, Seamlessly Built-In

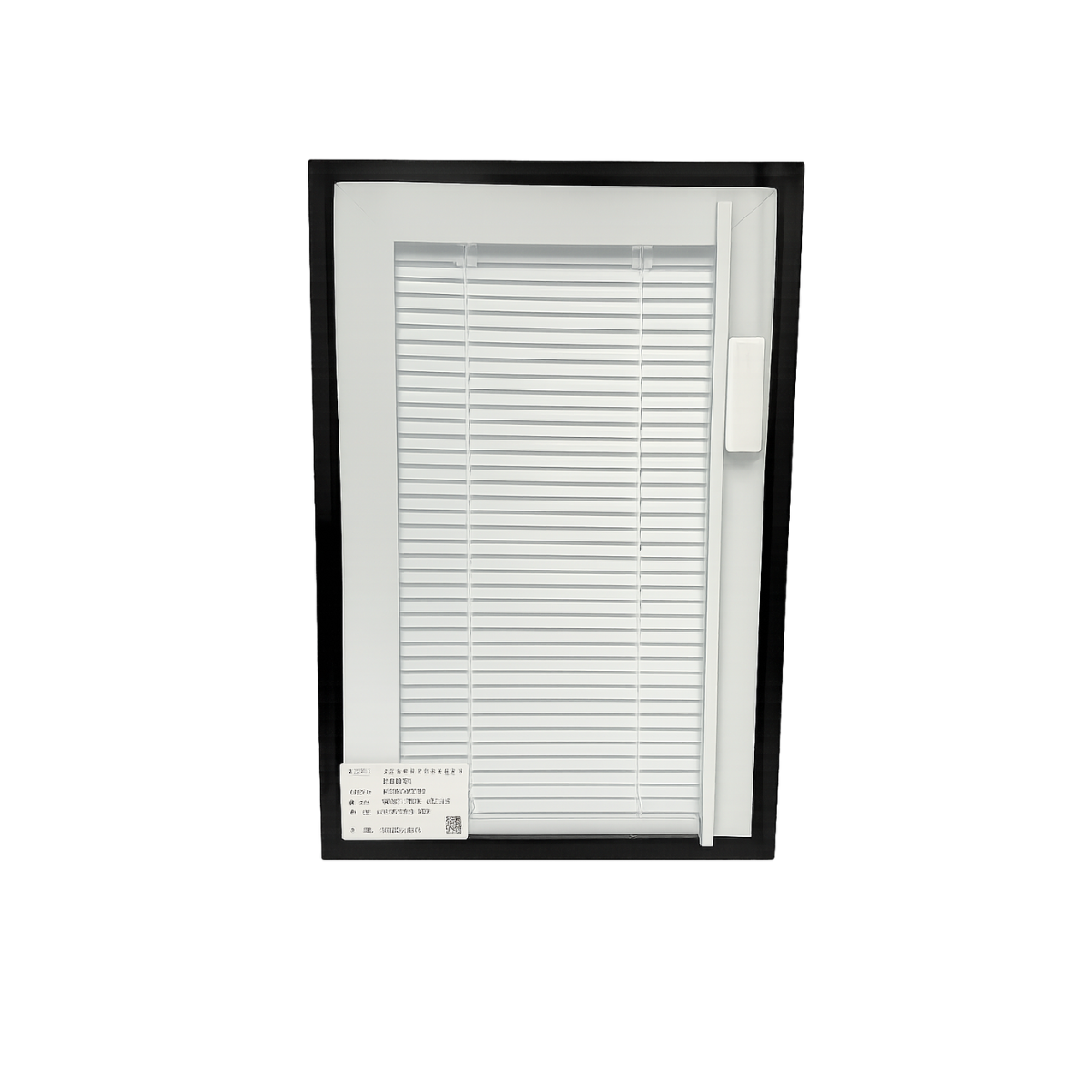

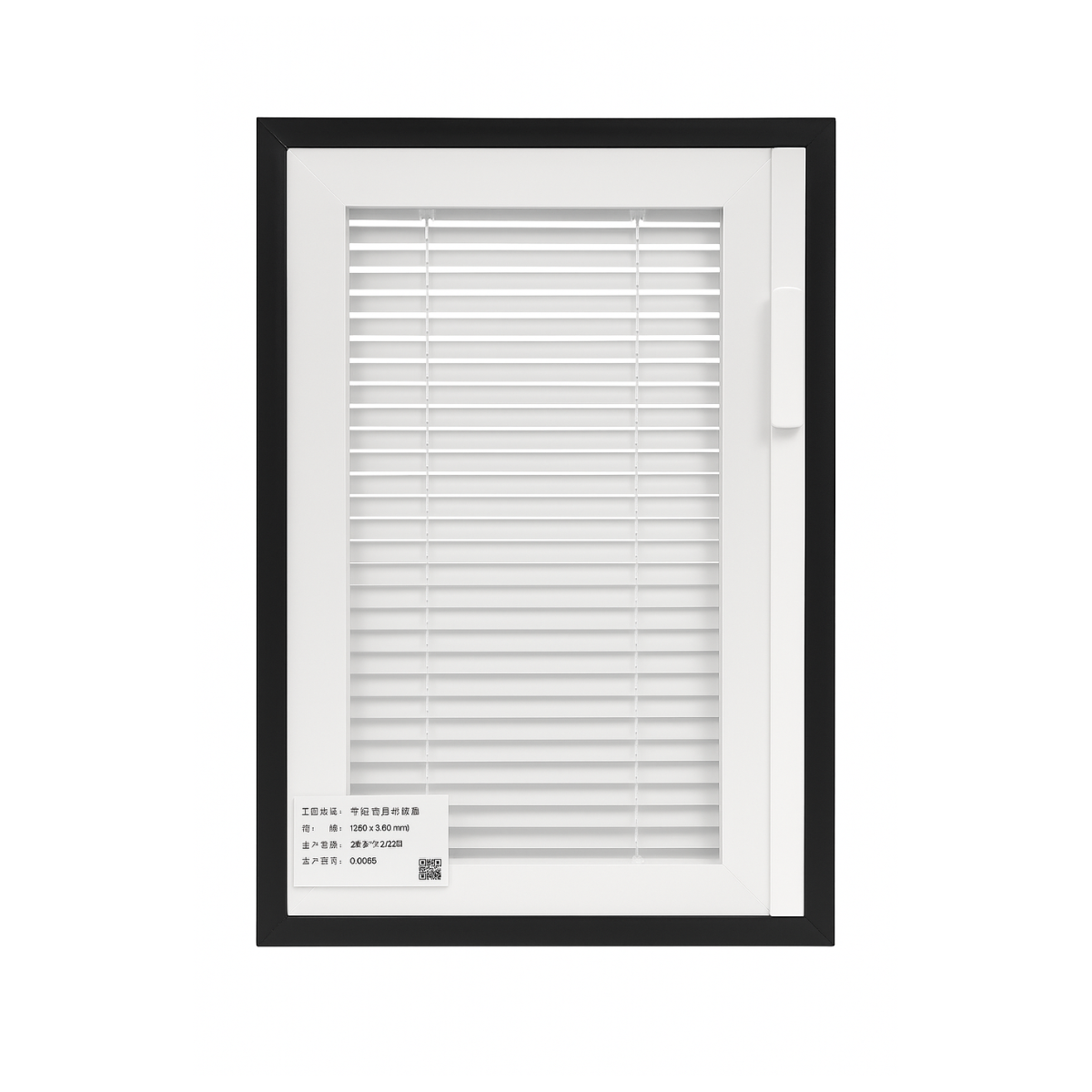

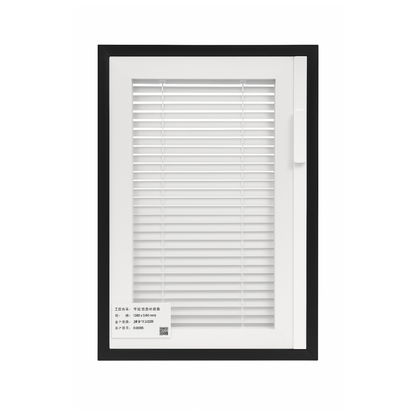

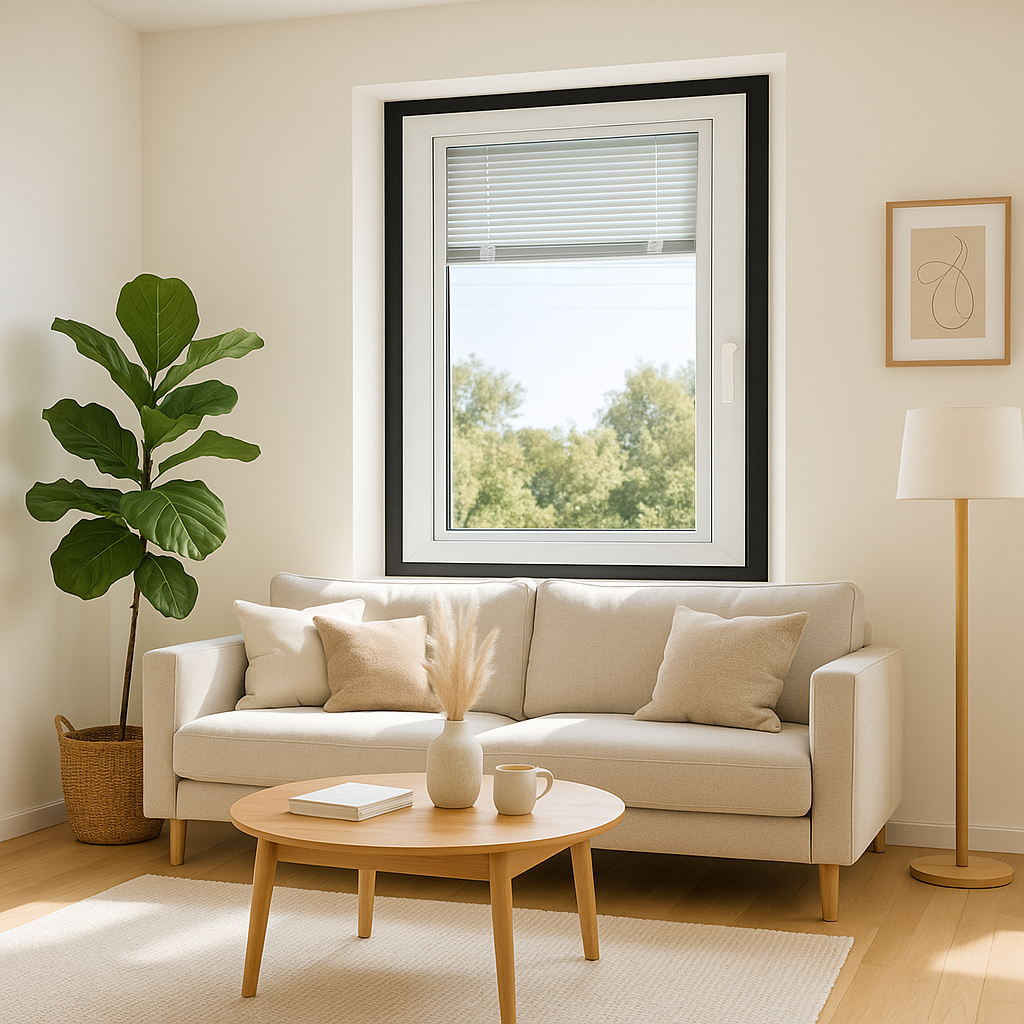

Experience a new standard in integrated shading with LumaShade™, the magnetic control louvered glass system designed to deliver effortless privacy, comfort, and energy efficiency. Featuring sleek aluminum-magnesium alloy Venetian blinds hermetically sealed between insulated glass panes, LumaShade eliminates the need for external cords, cleaning, or maintenance—offering uninterrupted performance for years to come.

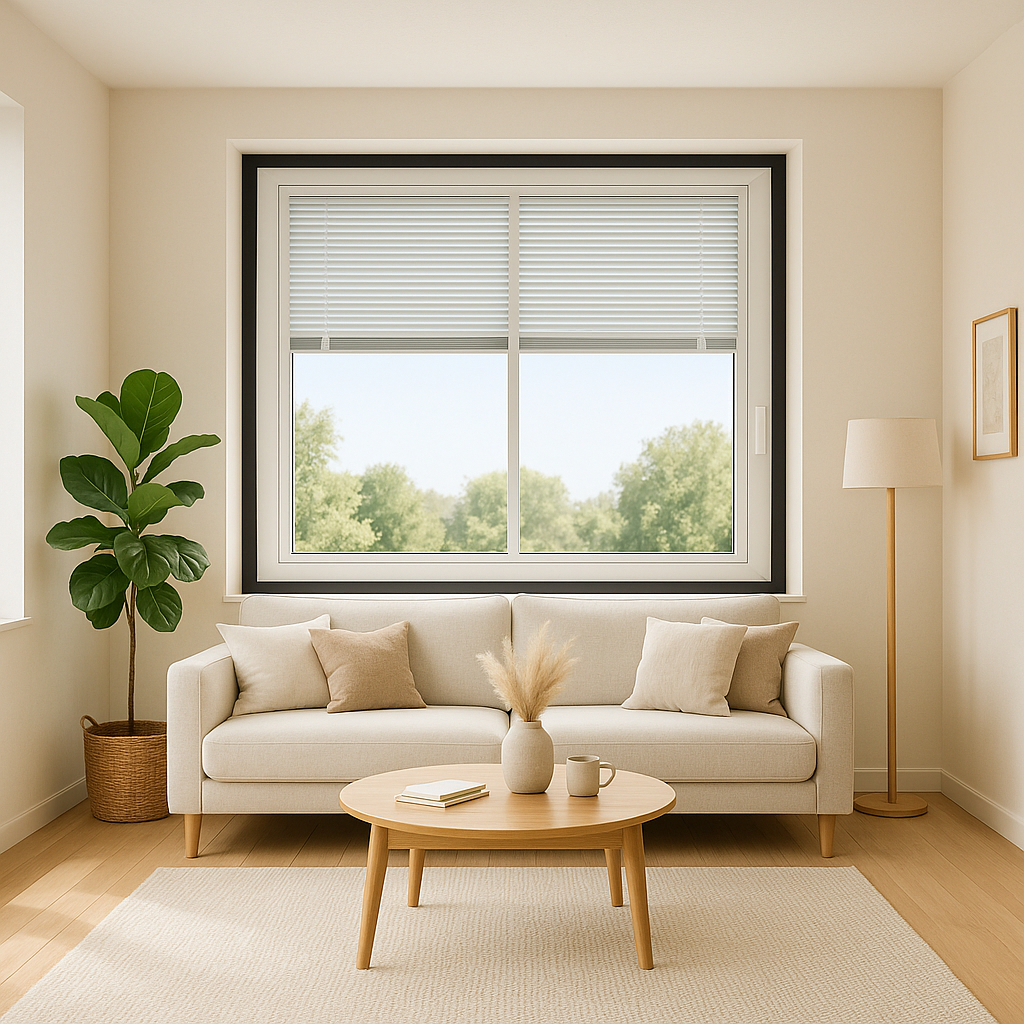

Whether in homes, offices, healthcare facilities, or commercial spaces, LumaShade provides precise control over light and heat, while enhancing acoustic insulation and overall aesthetics.

Key Features:
– Magnetic control Venetian blinds built into insulated glass units
– Blinds sealed inside: no dust, no wear, no cleaning
– Excellent thermal, solar, and acoustic insulation
– Manual or motorised control options
– Available in multiple air cavity options: 16A, 19A, 23A, 27A
– Perfect for bathrooms, meeting rooms, partitions, and façades

Technical Specifications
Slat Details:
• Material: Aluminum-magnesium alloy
• Width: 12.5 mm / 16 mm
• Thickness: 0.18 – 0.2 mm

Default Glass Thickness: 5–6 mm (contact us for other options)

Type: Single-Blind Sunshade

Single-Blind Sunshade
Double-Blind Sunshade
Triple-Glazed External Cavity Sunshade

Product variants

Share:

Share

Need help?

LumaShade™ - Magnetic Control Louvered IGU

Single-Blind Sunshade

$200.00 AUD

Product details

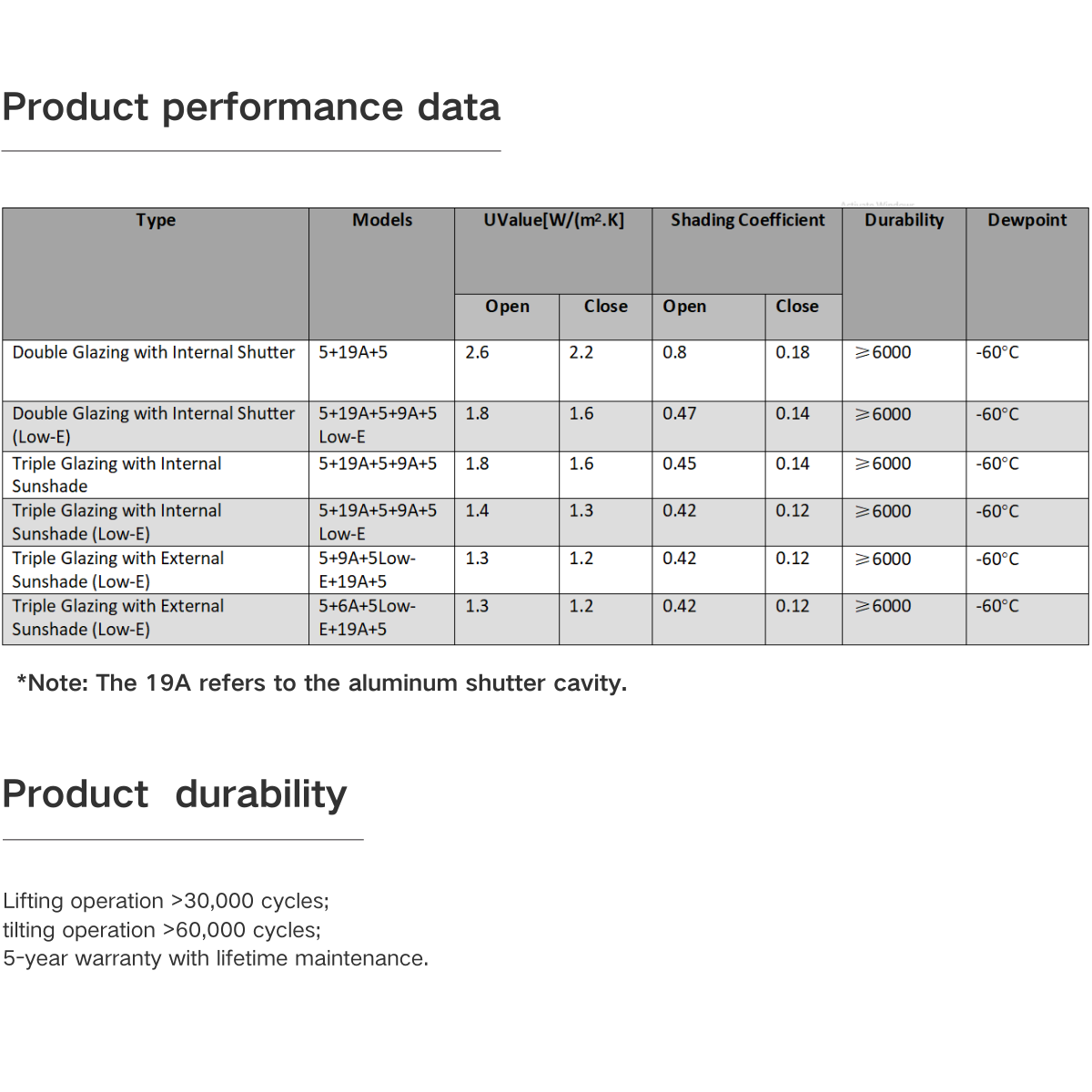

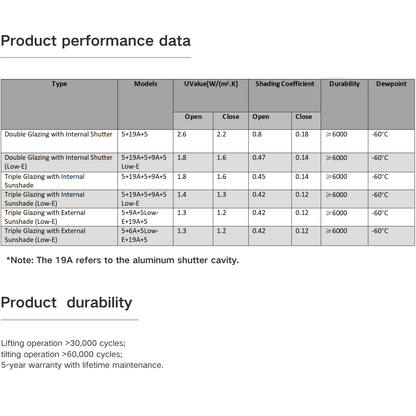

Performance Data

Note: 19A refers to the aluminum shutter cavity.

1. Double Glazing with Internal Shutter
• Model: 5+19A+5
• U-Value (W/m²·K): Open 2.6 / Close 2.2
• Shading Coefficient: Open 0.8 / Close 0.18
• Durability: ≥6000
• Dewpoint: -60°C

2. Double Glazing with Internal Shutter (Low-E)
• Model: 5+19A+5+9A+5 Low-E
• U-Value: Open 1.8 / Close 1.6
• Shading Coefficient: Open 0.47 / Close 0.14
• Durability: ≥6000
• Dewpoint: -60°C

3. Triple Glazing with Internal Sunshade
• Model: 5+19A+5+9A+5
• U-Value: Open 1.8 / Close 1.6
• Shading Coefficient: Open 0.45 / Close 0.14
• Durability: ≥6000
• Dewpoint: -60°C

4. Triple Glazing with Internal Sunshade (Low-E)
• Model: 5+19A+5+9A+5 Low-E
• U-Value: Open 1.4 / Close 1.3
• Shading Coefficient: Open 0.42 / Close 0.12
• Durability: ≥6000
• Dewpoint: -60°C

5. Triple Glazing with External Sunshade (Low-E)
• Model: 5+9A+5Low-E+19A+5
• U-Value: Open 1.3 / Close 1.2
• Shading Coefficient: Open 0.42 / Close 0.12
• Durability: ≥6000
• Dewpoint: -60°C

6. Triple Glazing with External Sunshade (Low-E)
• Model: 5+6A+5Low-E+19A+5
• U-Value: Open 1.3 / Close 1.2
• Shading Coefficient: Open 0.42 / Close 0.12
• Durability: ≥6000
• Dewpoint: -60°C

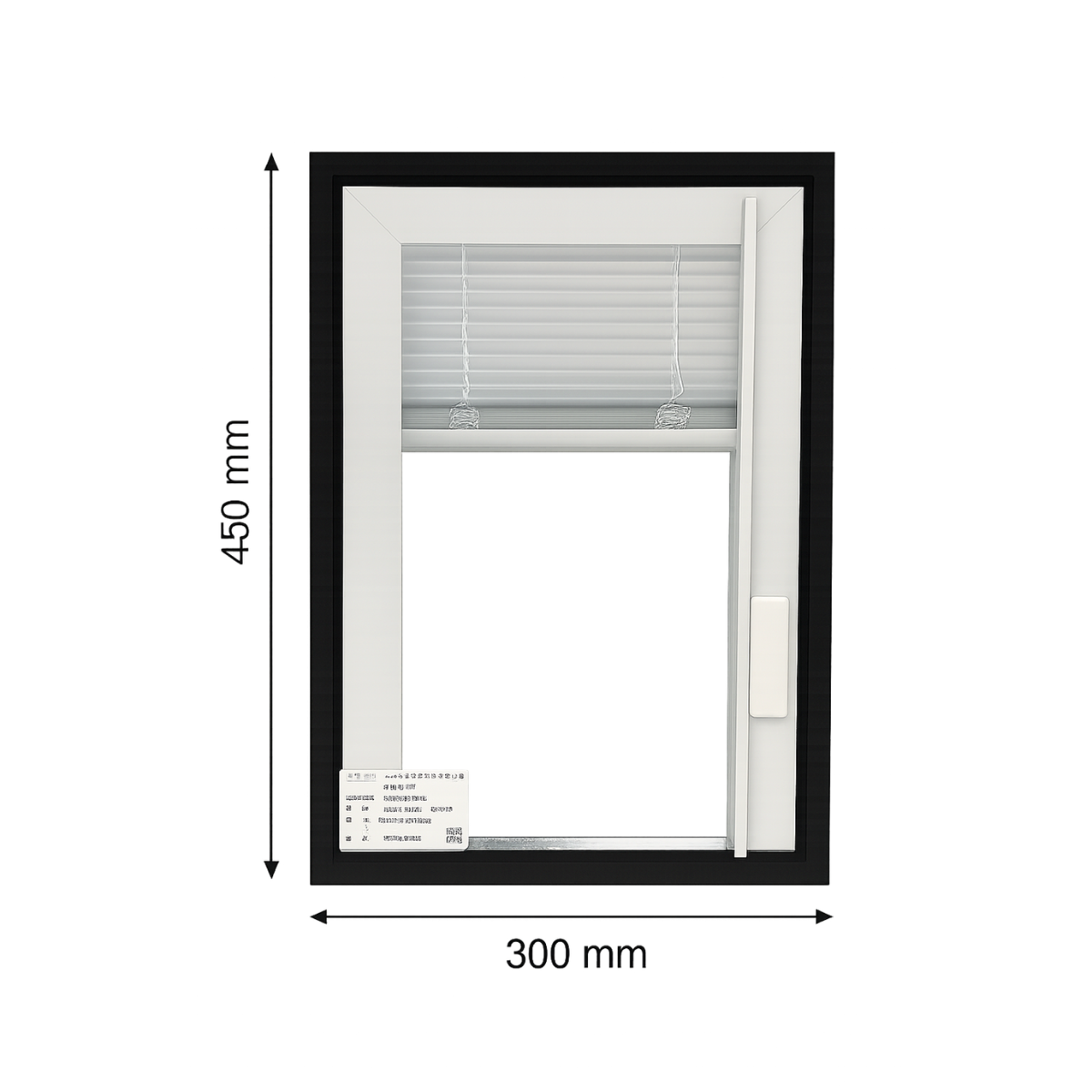

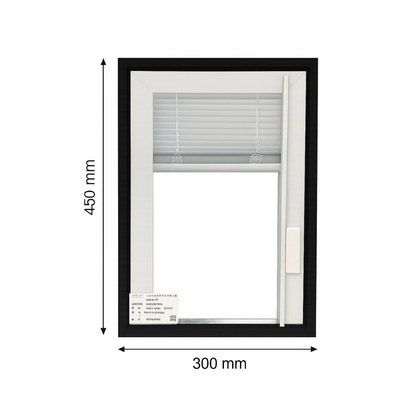

Dimensions

*Default insulated glass thickness is 5–6mm. Please consult technical staff if beyond this range.

Single-Blind Sunshade
Width: 200mm ≤ W < 2000mm
Height: 240mm ≤ H < 3500mm
Maximum Single Panel Area: 4.2㎡
Maximum Dimensions: W1200mm × H3500mm or W2000mm × H1900mm

Double-Blind Sunshade
Width: 400mm ≤ W < 3000mm
Height: 400mm ≤ H < 3500mm
Maximum Single Panel Area: 6.5㎡
Maximum Dimensions: W1800mm × H3500mm or W3000mm × H2000mm

Triple-Glazed External Cavity Sunshade
Width: 240mm ≤ W < 1800mm
Height: 300mm ≤ H < 2000mm
Maximum Single Panel Area: 2.8㎡
Maximum Dimensions: W1800mm × H1600mm or W1400mm × H2000mm
