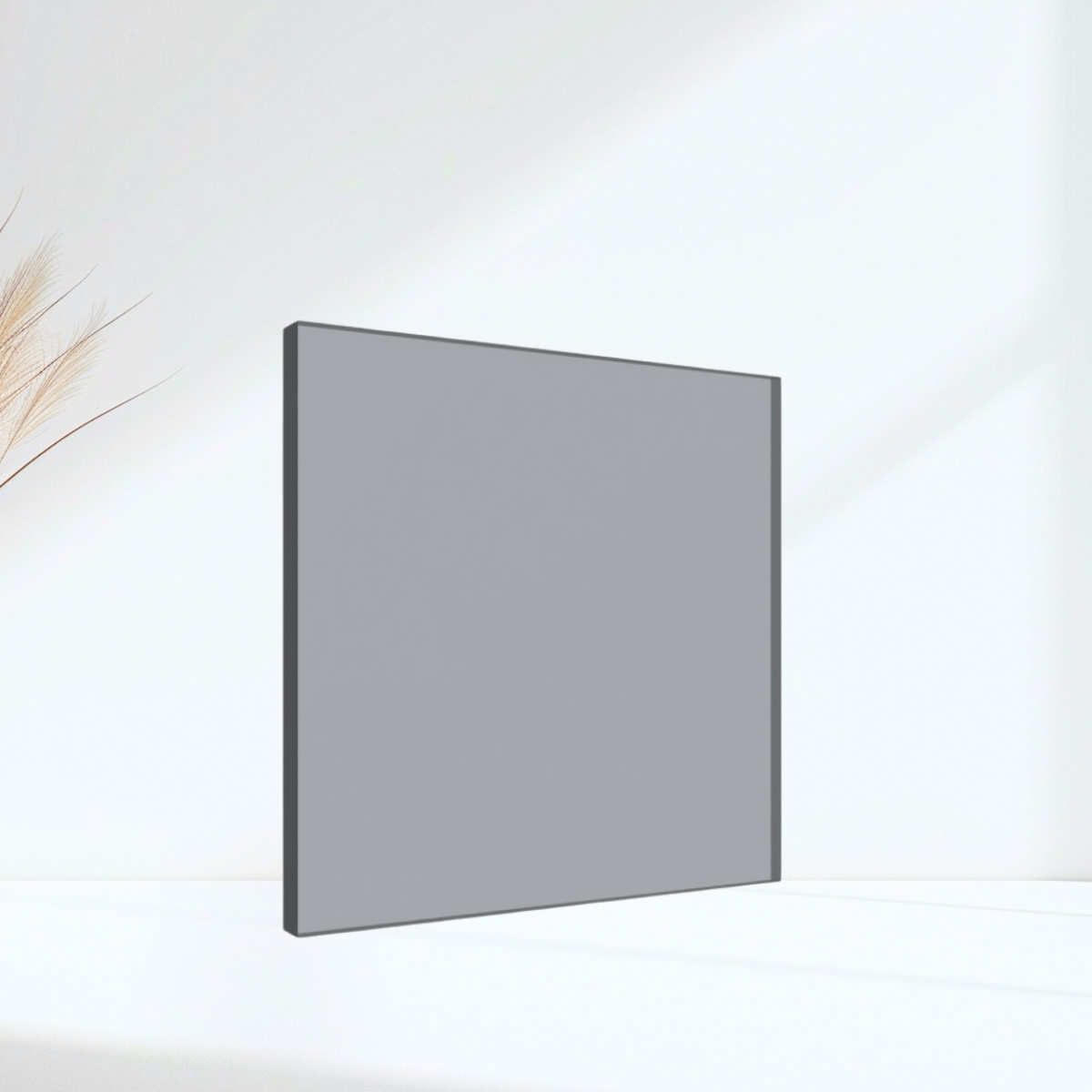

Laminated Grey Glass

· Visible Light Transmission (VLT): 43%

· External Reflectivity: 6%

· Internal Reflectivity: 6%

· U-Value (W.M2/℃): 5.39

· Solar Heat Gain Co-efficient (SGHC): 0.55

The above data is based on a 6mm Glass makeup. Varying thicknesses will result in varying performance.

· Smallest Size: 300mm x 300mm

· Max Size: 3300mm x 12000mm

*For Green, Bronze, Grey, Light Grey (Max Size 2400mm x 4200mm. Preorder required.)

· Residential

· Commercial

· Public Spaces

· Human Impact

· Windows

· Doors

· Balustrades

· ;Pool Fencing

· Stairs

· Facades

· Furniture

· Partitions

· Shower Screens

· Awnings

Standards & Considerations

· Laminated glass is manufactured in compliance with AS/NZS 2208 – Safety Glazing Materials in Buildings.

· Laminated Glass interlayer selection:

o Polyvinyl Butyral (PVB): Offers excellent adhesion to glass, clarity, and flexibility. It provides good sound insulation and UV protection while maintaining safety by holding the glass together upon impact.

o SentryGlas® (Ionoplast): Provides superior structural performance, allowing for thinner and lighter glass designs without sacrificing safety. It is also highly durable, with excellent weather resistance.

· Enhanced Safety: Laminated safety glass is constructed with an interlayer that holds the glass together in the event of breakage, preventing dangerous shards from scattering.

· Sound Insulation: The interlayer in our laminated glass significantly reduces noise transmission, making it perfect for environments where peace and quiet are essential.

· UV Protection: Our laminated glass blocks up to 99% of harmful UV rays, protecting interiors from fading and prolonging the life of furnishings.

· Increased Security: The tough interlayer provides an additional barrier against forced entry, making it an excellent choice for security-conscious installations.

· Versatility: Available in a range of thicknesses, colors, and finishes, our laminated glass can be tailored to meet the specific needs of any project.

ASG followed by overall thickness and Product name. Mention heat treatment heat strengthened or toughened and heat soaked.
