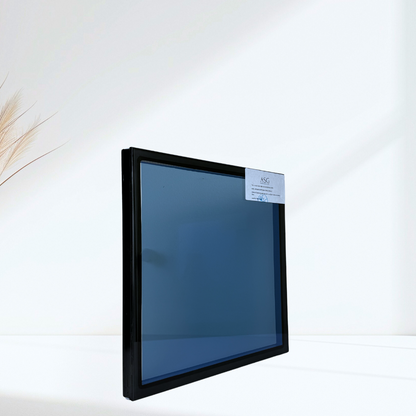

Sky Blue 35-1 on Clear UniQ-SHade Low-E IGU

· Visible Light Transmission (VLT): 29%

· External Reflectivity: 16%

· Internal Reflectivity: 17%

· U-Value (W.M2/℃): 1.67

· Solar Heat Gain Co-efficient (SGHC): 0.2

The above data is based on a 6mm+12mm Air Gap+6mm Glass makeup. Varying thicknesses will results in slightly varied performance.

· Smallest Size: 300mm x 300mm

· Max Size: 2700mm x 6000mm

· Residential Windows and Doors: Ideal for homeowners looking to make a design statement, UniQ SHade’s unique colors bring a modern and stylish flair to windows, sliding doors, and skylights, all while enhancing energy efficiency and indoor comfort.

· Commercial Buildings: Perfect for offices, hotels, and retail spaces, UniQ SHade offers a creative way to achieve both superior energy performance and eye-catching exteriors. The range of color choices allows businesses to express their brand identity through architectural design.

· Facades and Curtain Walls: UniQ SHade is the ideal solution for large glass facades and curtain walls, offering a contemporary, bold appearance while maintaining excellent thermal insulation and light control. The vibrant colors make for visually striking buildings that stand out in any urban landscape.

· Skylights and Roof Glazing: Use UniQ SHade for skylights and overhead glazing to introduce a subtle tint of color into your design while maximizing energy efficiency and providing soft, diffused natural light.

· Public and Cultural Buildings: Suitable for schools, museums, and galleries, UniQ SHade allows designers to incorporate unique, vibrant colors into their glass installations while delivering the thermal performance needed to maintain a comfortable and sustainable indoor environment.

· Advanced Low-E Performance: UniQ SHade is engineered with high-performance Low-E (Low-Emissivity) coating that enhances energy efficiency by reflecting heat back into the building during cooler months and reducing solar heat gain in the summer. This ensures consistent indoor temperatures and helps lower energy costs.

· Unique Colour Options: UniQ SHade offers an exclusive palette of colors, including champagne, bronze, emerald, and purple, giving architects and designers the freedom to create standout facades and enhance the visual identity of projects. These unique exterior colors complement a neutral appearance from inside the building.

· Neutral Interior Colour: While UniQ SHade features vibrant and bold colors on the exterior, the view from inside maintains a neutral tone, ensuring that the glass blends seamlessly with interior spaces without altering the natural lighting or aesthetic.

· Energy Efficiency and Light Control: UniQ SHade not only delivers superior thermal insulation but also allows natural light to enter the building while minimizing glare. This creates bright, comfortable indoor environments with excellent energy savings.

· UV Protection: UniQ SHade blocks harmful UV rays, helping to protect interior furnishings, flooring, and artwork from fading and damage caused by sunlight.

· Durability and Safety: Available in both tempered and laminated forms, UniQ SHade glass is built to meet the highest safety standards, ensuring it performs reliably in high-traffic areas and exterior applications.

· Optical Clarity: Despite its special color options and high-performance coatings, UniQ SHade maintains clear, crisp views, offering the perfect blend of aesthetics and functionality.

5mm-12mm per lite. Can be applied on laminated glass but coating must face the air spacer of an IGU.

ASG followed by overall thickness and Product name. Mention heat treatment heat strengthened or toughened and heat soaked.
